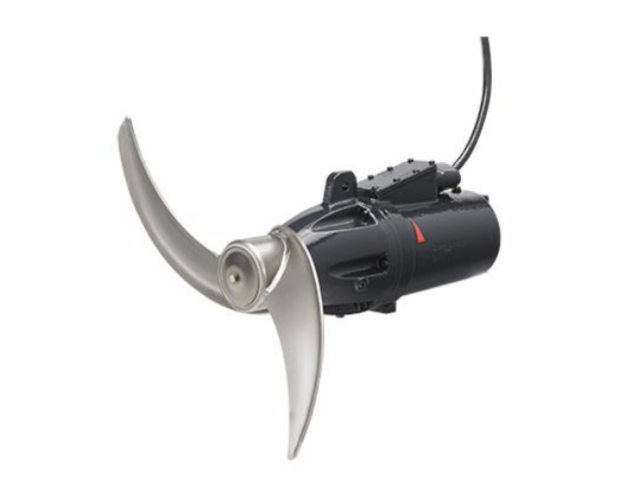

Grundfos格兰富污水处理潜污泵SMG.25.71 .263.5.1B搅拌器价格-型号-参数-用途-格兰富水泵

Grundfos格兰富污水处理潜污泵SMG.25.71 .263.5.1B搅拌器技术:

推力功率比:  0.413

轴向依托力:  1020 N

额定流量:  449 升/秒

平均速度:  1.13 米/秒

螺旋桨转速:  263 转数／分钟

Tip speed:  9.78 米/秒

齿轮齿数比:  5.600

推进器直径:  710 毫米

推进器片数量:  2

主轴封:  2 RADIAL LIP SEALS

Curve tolerance:  ISO9906:2012 3B

材料:

电机:  AISI EN-GJL-250

螺旋桨:  1.4301

轴心:  AISI 1.4301

油漆厚度:  450 micrometre

Secondary shaft seal:  SIC/SIC

安装:

Maximum installation depth:  20 米

适配圆柱形管，尺寸:  80/80 毫米

液体:

液体温度范围:  5 .. 40 °C

电气数据:

输入功率——P1:  2.8 千瓦

Power input Act:  2.47 千瓦

额定功率——P2:  2.5 千瓦

电源频率:  50 Hz

额定电压:  3 x 400-415 V

电压差:  +6/-10 %

Rated current:  5.3 安

启动电流:  47 安

Cos phi – 功率因数:  0.81

Cos phi – 3/4 负载时的功率因数:  0.73

Cos phi – 1/2 负载时的功率因数:  0.59

Rated driver speed:  1450 转数／分钟

电机满载效率:  87.9 %

电机3/4负荷效率:  87.7 %

电机1/2负荷效率:  85.9 %

电机极数:  4

起动方法:  Y/D

封装等级（IEC 34-5）:  IP68

Insulation class (IEC 85):  H

防爆:  N

Built-in motor protection:  PTO (THERMAL SWITCH)

Cable type:  S1BN8-F 11G1.5

Length of power cable:  10 米

Power plug:  No plug

控制器:

湿度传感器:  N

探测液体中杂质的电容传感器:  Y

其他:

Net weight:  77 千克

SMG.25.71 .263.5.1B，The Grundfos range of horizontal submersible SMG mixers is designed for applications involving the mixing, i.e. the homogenisation and suspension, of low- to medium-viscosity liquids. The mixers are equipped with a gearbox and an energy-efficient propeller.The squirrel-cage induction motor is protected against overload by means of three bimetallic thermal switches (PTO) in the motor windings. The products are equipped with IE3 motor components .To prevent ingress of the surrounding liquid, the SMG mixers have two radial FKM rubber lip seals together with a ceramic wear ring and a mechanical shaft seal made of silicon carbide/silicon carbide or tungsten carbide/tungsten carbide, depending on size. The secondary seal between the gearbox and the motor is made of carbon/aluminium oxide.The oil-filled gearbox is monitored for the ingress of water by a leak sensor incorporated as standard in the gearbox. The sensor can trigger an alarm signal and/or switch off the motor by means of an external Grundfos relay type ALR-20/A.The gearbox incorporates tapered roller bearings absorbing the axial force from the propeller.Motors range from 0.9 to 18.5 kW.A wide range of accessories made of stainless steel AISI 304/316 ensures easy installation and long trouble-free operation.
